Discover unmatched holding power with the JLW-323 Heavy Duty Double Sided Multipurpose Mounting Tape, the premier industrial-grade adhesive solution engineered for both indoor and outdoor applications. Formulated with an advanced acrylic core, this high-performance double sided mounting tape provides strong adhesion across a variety of substrates, including glass, metal, wood, tile, and concrete, effectively eliminating the need for nails or screws. In addition to delivering superior resistance to moisture and extreme temperatures, our dedicated product services include expert technical support, custom roll sizing, and tailored bonding solutions designed to meet your specific project requirements. Trust the JLW-323 Heavy Duty Double Sided Multipurpose Mounting Tape for reliable, durable, and clean installations across all your home improvement and commercial needs.
Product Features

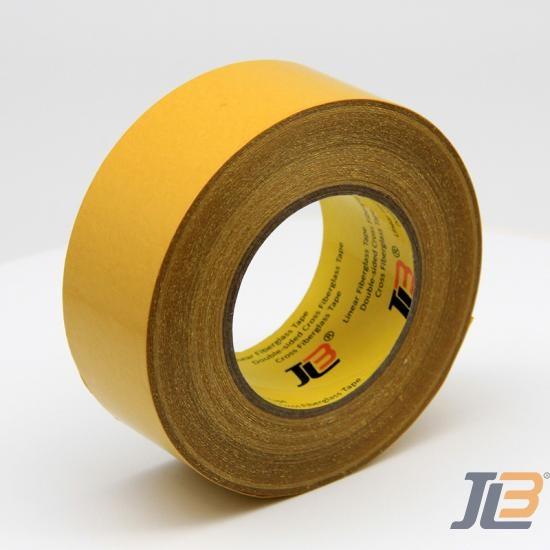

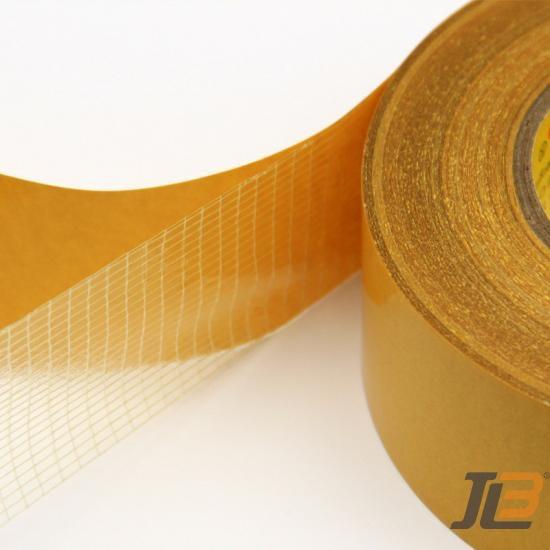

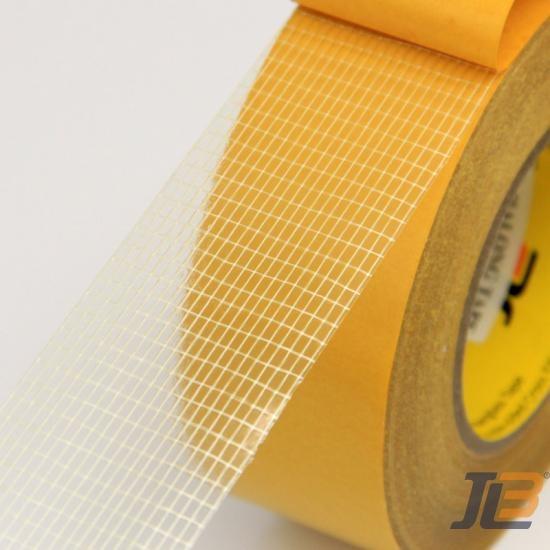

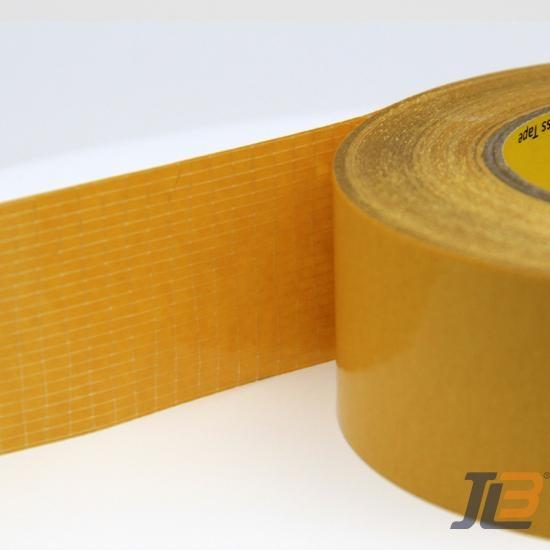

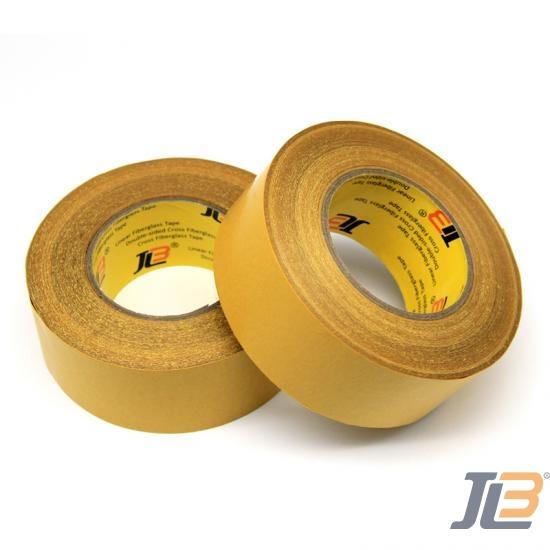

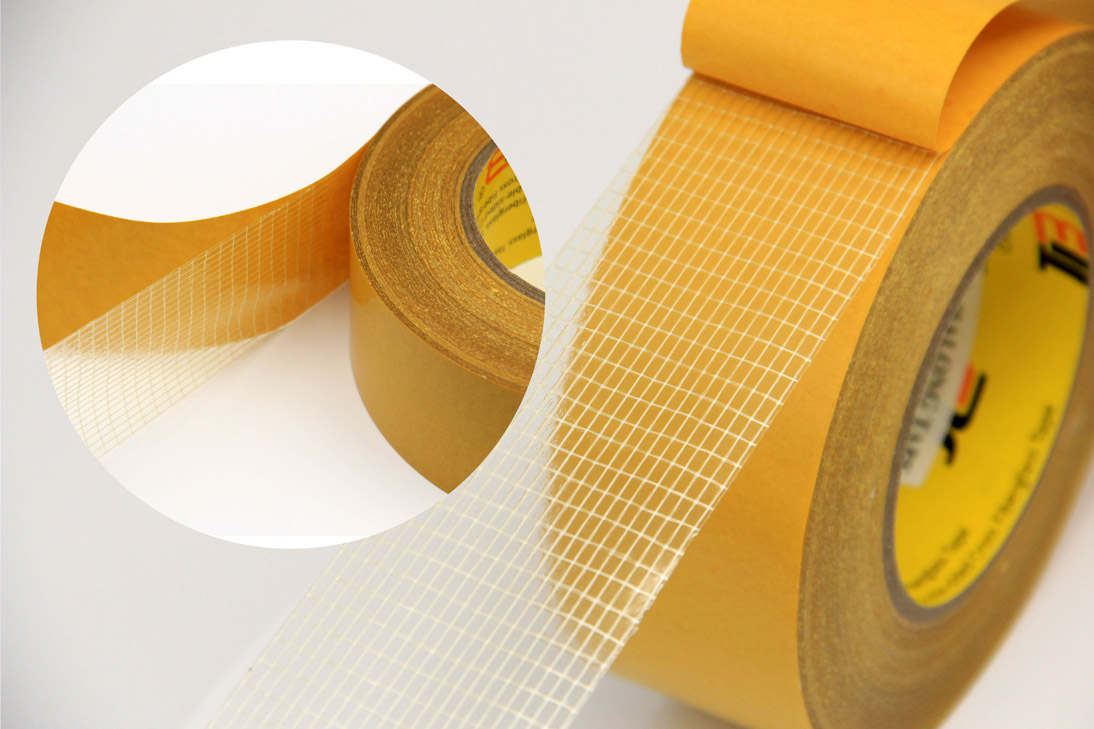

JLW-323 is a yellow and reinforced bi-directional double-sided filament tape. Glass fiber contributes higher tensile strength and improved synthetic rubber delivers stronger adhesion; generating bi-directionally strengthened effect; high resistance to abrasion; impact resistance and high holding
power.
TDS
| Physical Properties | Standard | Metric | Test Method | ||
| Reinforcement | Fiberglass | ||||
| Adhesive | Synthetic Rubber | ||||
| Backing | Glassine Paper | ||||
| Color | Yellow | ||||
| Total Thickness | 7.9 mils | 0.20 mm | ASTM D-3652 | GB/T7125 | |
| Peel Adhesion 90° | 72 oz/in | 20 N/25mm | ASTM D-3330 | GB/T2792 | |
| Holding Power | ≥24 h | ≥24 h | ASTM D-3654 | GB/T4851 | |
| Tensile strength | 45 lbs/in | 200 N/25mm | ASTM D-3759 | GB/T7753 | |
| Elongation at break | 5-7 % | 5-7 % | ASTM D-3759 | GB/T7753 | |
| Service Tem. - Mini | 23℉ | -5℃ | BC/BD-220SE | BC/BD-220SE | |
| Service Tem. - Max | 158℉ | 70℃ | DHG-9055A | DHG-9055A | |
Product Application
Suitable for the adhesion to insulation layer of floor; plastic articles; foam; textiles; non-weaving fabrics and PU.
Other Related Products
· JLW-323, JLW-313A, JLW-313: self-adhesion of decoration articles, insulation layer of floor, rubber products, foam, textiles, auto interior, non-weaving fabrics, bags and suitcases, tag, leather, aluminum board and wooden ornament, and the strip sealing of windows and doors
· JLW-316BG, JLW-323B-1: Used in fireproof materials, mainly for foam sealing strip of fireproof doors and windows.
· JLW-315C, JLW-315: Mostly used for the joint of sports floor, rubber products.
