Discover unmatched holding power with our Heavy Duty Two Sided Fiberglass Mesh Tape for High Strength Bonding, expertly engineered to tackle the most demanding mounting, splicing, and assembly challenges. Featuring a reinforced woven glass core, this tape delivers exceptional high tensile strength and dimensional stability without stretching or tearing. It combines industrial-grade adhesion with superior shear resistance, making it ideal for reliable surface bonding across metals, plastics, textiles, and construction materials. Beyond delivering superior adhesive rolls, we provide comprehensive manufacturing solutions including custom slitting and die-cutting services tailored to your precise industrial specifications. Enhance your production efficiency and structural integrity with a versatile bonding solution designed to withstand severe thermal variations, dynamic stresses, and heavy load demands.
Product Features

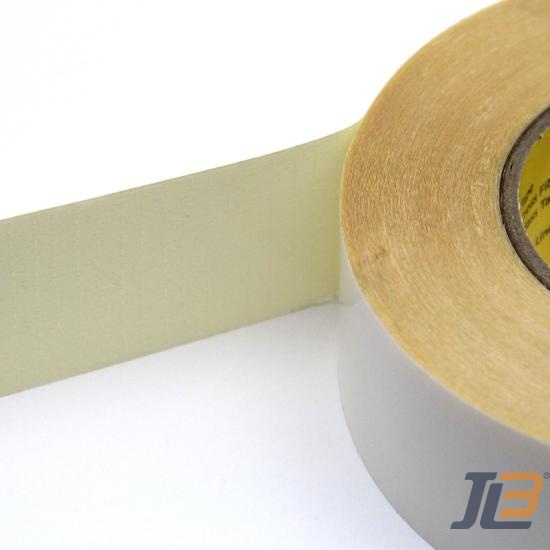

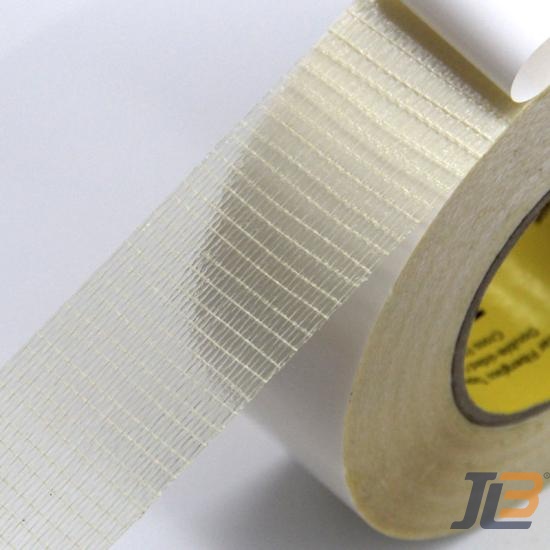

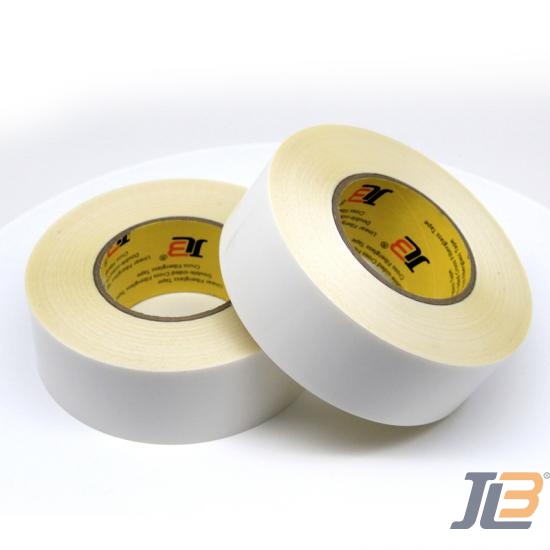

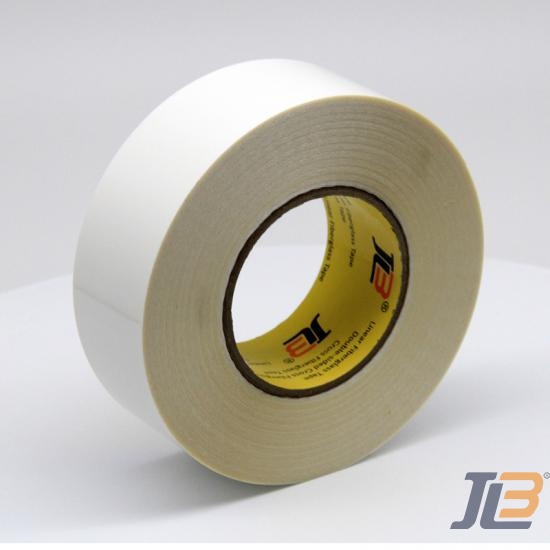

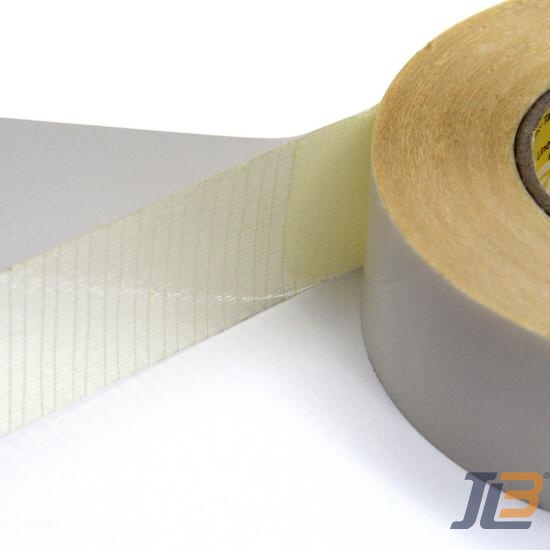

JLW-313A is a white and high strength bi-directional double-sided filament tape. Glass fiber contributes higher tensile strength and improved synthetic rubber delivers stronger adhesion; generating bi-directionally strengthened effect; high resistance to abrasion; impact resistance and high holding power.
TDS
| Physical Properties | Standard | Metric | Test Method | ||
| Reinforcement | Fiberglass | ||||
| Adhesive | Synthetic Rubber | ||||
| Backing | PET White Film | ||||
| Color | White | ||||
| Total Thickness | 10.6 mils | 0.27 mm | ASTM D-3652 | GB/T7125 | |
| Peel Adhesion 90° | 79 oz/in | 22 N/25mm | ASTM D-3330 | GB/T2792 | |
| Holding Power | ≥48 h | ≥48 h | ASTM D-3654 | GB/T4851 | |
| Tensile strength | 67 lbs/in | 300 N/25mm | ASTM D-3759 | GB/T7753 | |
| Elongation at break | 5-7% | 5-7% | ASTM D-3759 | GB/T7753 | |
| Service Tem. - Mini | 23℉ | -5℃ | BC/BD-220SE | BC/BD-220SE | |
| Service Tem. - Max | 158℉ | 70℃ | DHG-9055A | DHG-9055A | |
Product Application
Suitable for the self-adhesion of decoration articles; exclusively for foam sealing strip of windows
and doors.
Other Related Products
· JLW-323, JLW-313A, JLW-313: self-adhesion of decoration articles, insulation layer of floor, rubber products, foam, textiles, auto interior, non-weaving fabrics, bags and suitcases, tag, leather, aluminum board and wooden ornament, and the strip sealing of windows and doors
