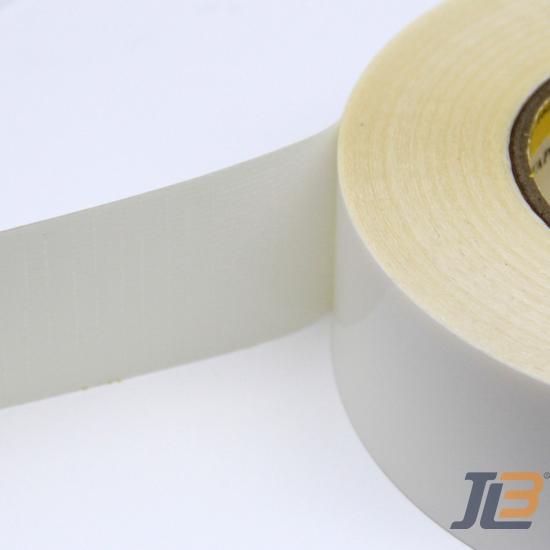

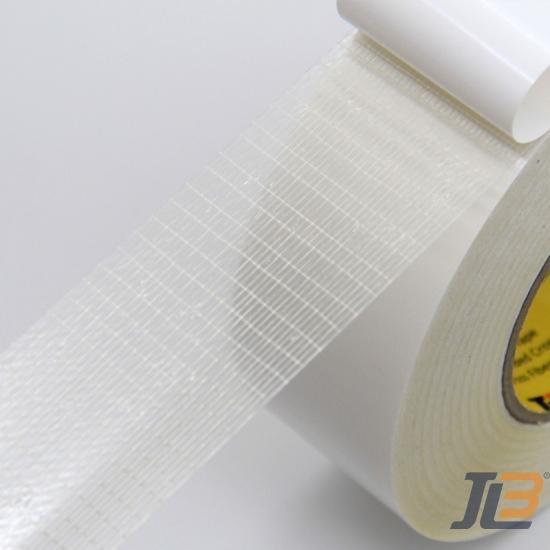

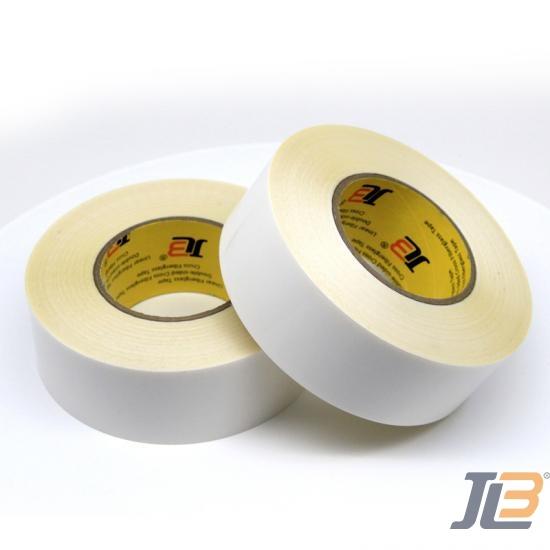

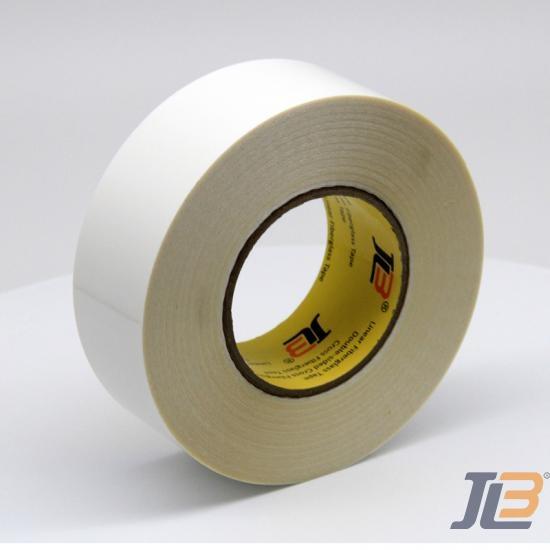

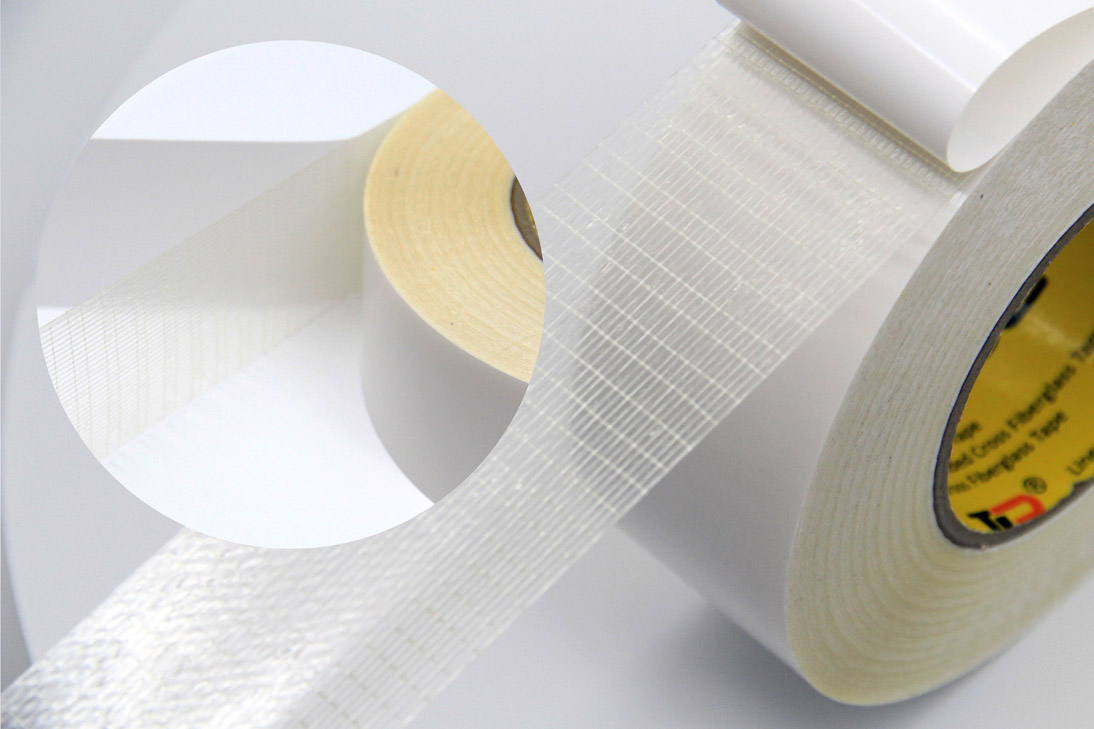

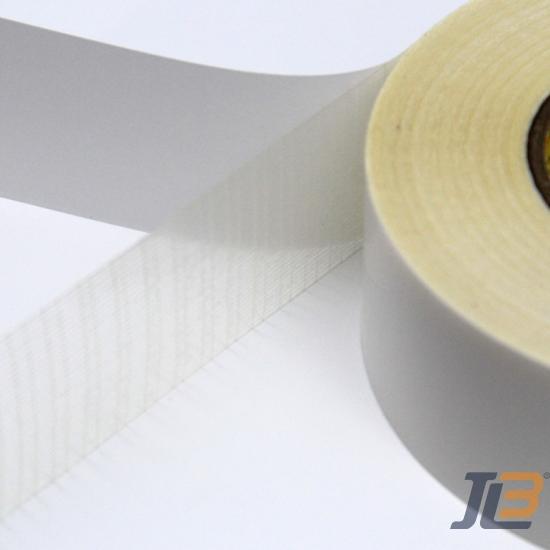

The JLW-316BG Double-sided Cross Filament Tape is an advanced industrial solution engineered for demanding mounting, laminating, and securing applications. Featuring robust fiberglass reinforcement in a bi-directional pattern, this high-performance tape delivers exceptional tensile strength and tear resistance across both longitudinal and transverse directions. Coated with a premium synthetic rubber adhesive on both faces, it ensures aggressive tack and dependable, heavy-duty bonding to various substrates, including plastics, metals, and corrugated surfaces. Alongside manufacturing world-class adhesive materials, we offer end-to-end client support through custom slitting services, bespoke die-cutting, and rapid global distribution. Rely on our cross filament tape to optimize your packaging, construction, and manufacturing operations with enduring structural stability.
Product Features
JLW-316BG is a white and high strength bi-directional double-sided filament tape. Glass fiber contributes higher tensile strength and improved pressure-sensitive adhesive delivers stronger adhesion; generating bidirectionally strengthened effect; high resistance to abrasion; impact resistance and high holding power.
TDS
| Physical Properties | Standard | Metric | Test Method | ||
| Reinforcement | Fiberglass | ||||
| Adhesive | Acrylic Pressure-Sensitive Adhesive | ||||
| Backing | White PET Film | ||||
| Color | White | ||||
| Total Thickness | 9.8 mils | 0.25 mm | ASTM D-3652 | GB/T7125 | |
| Peel Adhesion 90° | 61 oz/in | 17 N/25mm | ASTM D-3330 | GB/T2792 | |
| Holding Power | ≥5 h | ≥5 h | ASTM D-3654 | GB/T4851 | |
| Tensile strength | 67 lbs/in | 300 N/25mm | ASTM D-3759 | GB/T7753 | |
| Elongation at break | 5-7% | 5-7% | ASTM D-3759 | GB/T7753 | |
| Service Tem. - Mini | 23℉ | -5℃ | BC/BD-220SE | BC/BD-220SE | |
| Service Tem. - Max | 212℉ | 100℃ | DHG-9055A | DHG-9055A | |
Product Application

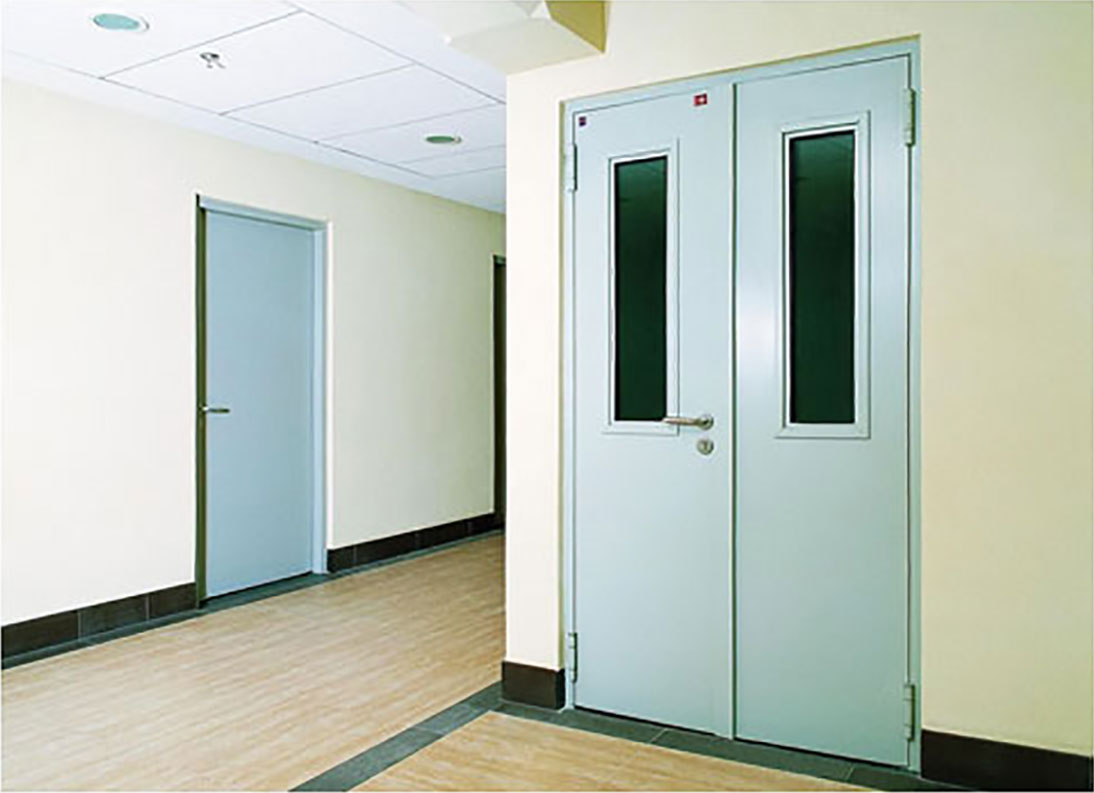

Suitable for the self-adhesion of decoration articles; exclusively for foam sealing strip of fireproof
doors and windows.
Other Related Products
· JLW-323, JLW-313A, JLW-313: self-adhesion of decoration articles, insulation layer of floor, rubber products, foam, textiles, auto interior, non-weaving fabrics, bags and suitcases, tag, leather, aluminum board and wooden ornament, and the strip sealing of windows and doors
