Engineered for maximum stability and extreme tear resistance, the JLW-306 8*8 Mesh Bi-Directional Filament Tape is the ultimate solution for demanding industrial bundling and heavy-duty packaging applications. Reinforced with a premium cross-weave fiberglass mesh, this tape delivers superior bi-directional tensile strength and exceptional shear resistance, ensuring cartons and loads remain firmly secured during transit. Along with this high-performance adhesive solution, we provide comprehensive manufacturing support, including precision custom slitting services, OEM branding options, and fast international delivery. Whether securing steel coils, reinforcing heavy-duty containers, or stabilizing pallets, our reinforced filament tape offers unmatched reliability backed by our dedicated technical support team.
Product Features
JLW-306 is a light yellow and high strength bi-directional filament tape. Glass fiber contributes higher tensile strength and improved synthetic rubber delivers stronger adhesion; generating bi-directionally strengthened effect; high resistance to abrasion; impact resistance and high holding power.
TDS
| Physical Properties | Standard | Metric | Test Method | ||
| Reinforcement | Fiberglass | ||||
| Adhesive | Synthetic Rubber | ||||
| Backing | PET | ||||
| Color | Light Yellow | ||||
| Total Thickness | 7.9 mils | 0.20 mm | ASTM D-3652 | GB/T7125 | |
| Peel Adhesion 90° | 137 oz/in | 38 N/25mm | ASTM D-3330 | GB/T2792 | |
| Holding Power |
≥48h |
≥48h | ASTM D-3654 | GB/T4851 | |
| Tensile strength | 72 lbs/in | 320 N/25mm | ASTM D-3759 | GB/T7753 | |
| Elongation at break | 3-5% | 3-5% | ASTM D-3759 | GB/T7753 | |
| Service Tem. - Mini | 23℉ | -5℃ | BC/BD-220SE | BC/BD-220SE | |
| Service Tem. - Max | 158℉ | 70℃ | DHG-9055A | DHG-9055A | |
Product Application
Suitable for pipe strapping; general bundling; pallet fixing; sealing and bundling reinforced marine carton.

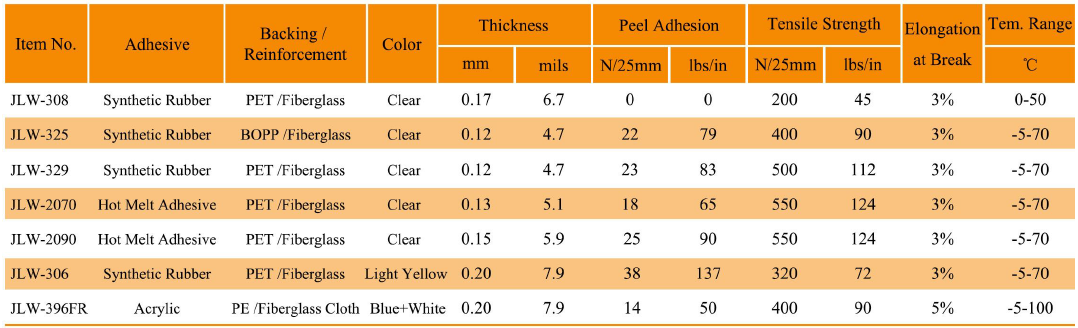

Other Related Products
· JLW-308: Will be sticky when it is heated; Good wear resistance, applied in the internal fastening of high voltage cable etc.
· JLW-325, JLW-329, JLW-306: Heavy box closure, splicing, general bundling and reinforcing, sealing edge of special woven bag sealing edge, metal coil closure, pipeline bundling etc.
· JLW-2070: Heavy box closure, palletizing, strapping, bundling and reinforcing etc.
· JLW-396FR: Fiberglass cloth tape, is made of flame retardant acrylic adhesive, which provide excellent flame retardant properties ; Mainly designed for the application of aircraft cargo and other maintenance, repair and operating (MRO); It is normally applied in sealing aircraft cargo panels.
