Engineered to deliver exceptional thermal stability, the JLT-695 High Temperature Heat Resistant Tape for Electronics Soldering is the premier solution for demanding electrical assembly applications. Formulated with a durable polyimide film backing and high-performance silicone adhesive, this industrial-grade heat resistant tape provides superior thermal insulation and withstands extreme operating temperatures during wave soldering and reflow processes. It ensures reliable PCB masking by safeguarding sensitive circuit board components against molten solder splashes, while guaranteeing clean, residue-free removal upon process completion. Alongside our premium tape inventory, we provide comprehensive custom die-cutting services and bespoke slit-width manufacturing to meet your exact production line specifications, backed by responsive technical support for seamless electronic component fabrication.
Product Features

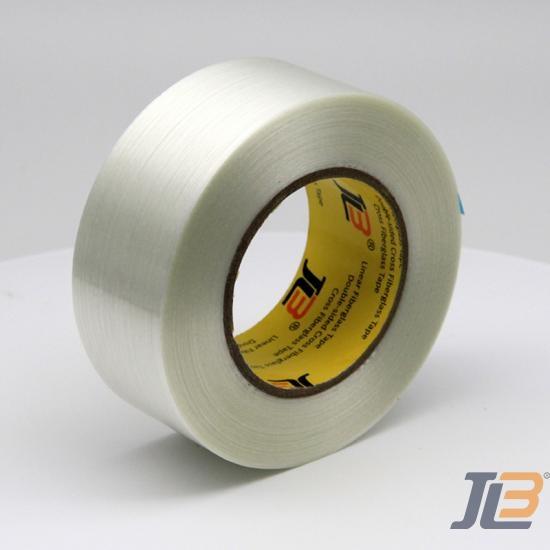

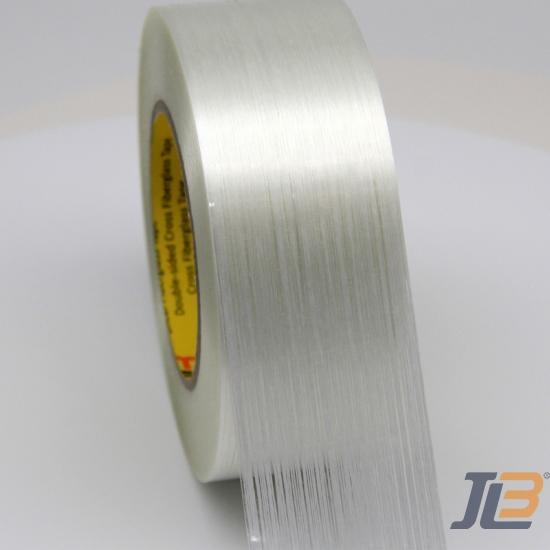

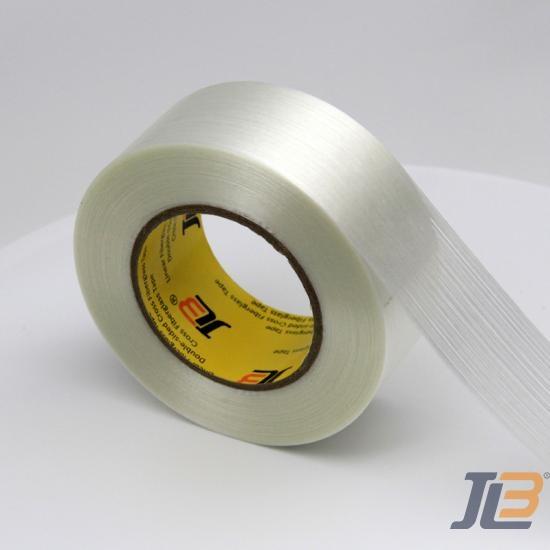

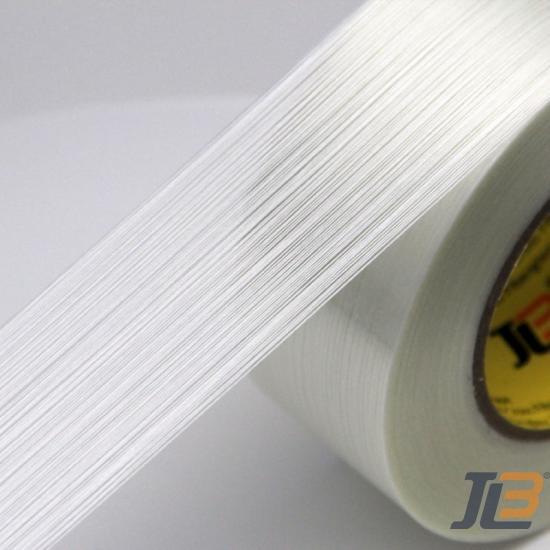

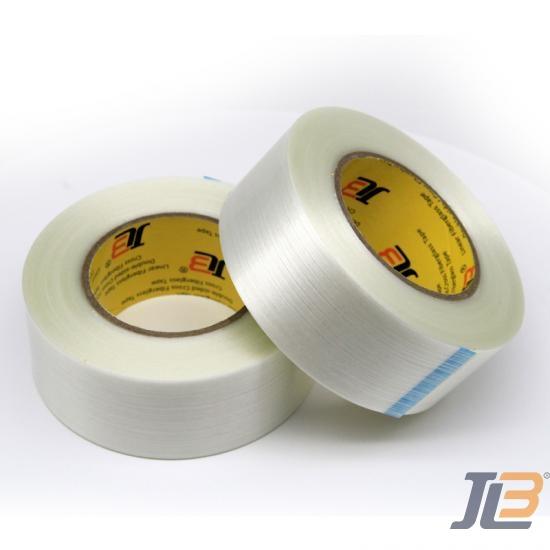

JLT-695 is a transparent and high strength filament tape. Glass fiber contributes higher tensile strength and improved pressure-sensitive adhesive delivers high viscosity andtensile strength; high resistance to abrasion; impact resistance and high holding power.
TDS
| Physical Properties | Standard | Metric | Test Method | ||
| Reinforcement | Fiberglass | ||||
| Adhesive | Acrylic Pressure-Sensitive Adhesive | ||||
| Backing | PET | ||||
| Color | Clear | ||||
| Total Thickness | 6.3 mils | 0.16 mm | ASTM D-3652 | GB/T7125 | |
| Peel Adhesion 90° | 58 oz/in | 16 N/25mm | ASTM D-3330 | GB/T2792 | |
| Holding Power | ≥24 h | ≥24 h | ASTM D-3654 | GB/T4851 | |
| Tensile strength | 214 lbs/in | 950 N/25mm | ASTM D-3759 | GB/T7753 | |
| Elongation at break | 3-5% | 3-5% | ASTM D-3759 | GB/T7753 | |
| Service Tem. - Mini | 23℉ | -5℃ | BC/BD-220SE | BC/BD-220SE | |
| Service Tem. - Max | 212℉ | 100℃ | DHG-9055A | DHG-9055A | |
Product Application

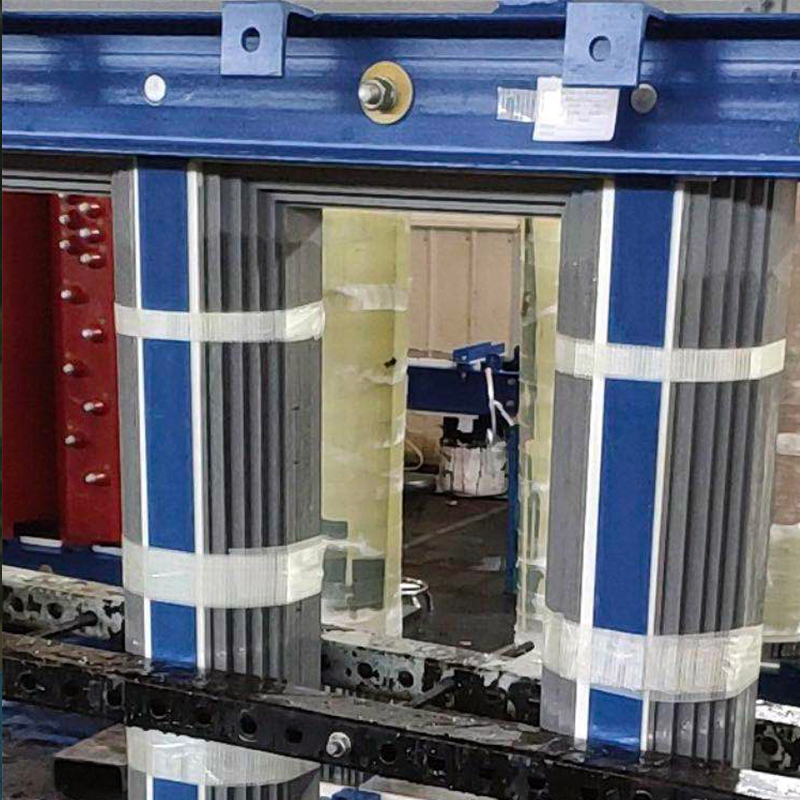

Suitable for transformers, coilsand motor parts strapping and fixing.

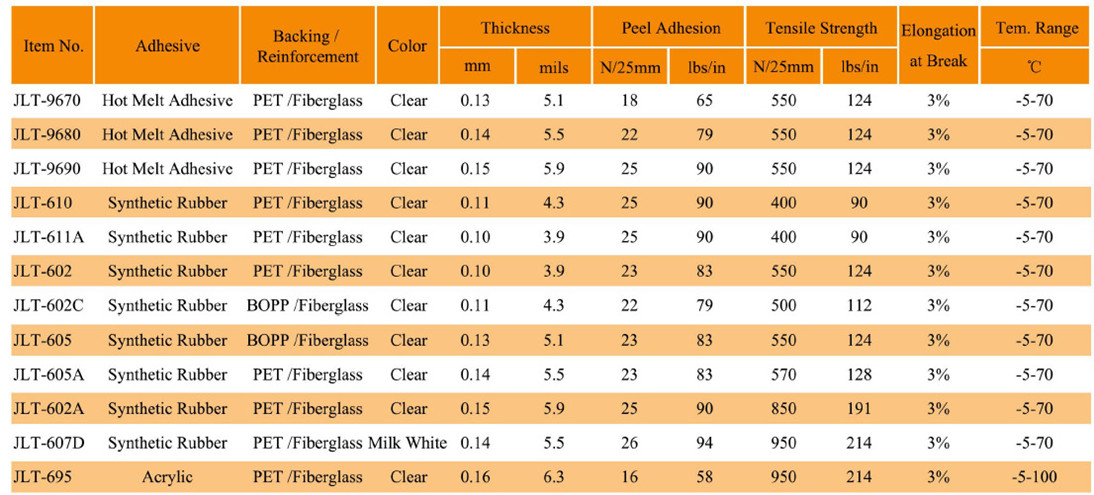

Other Related Products
· JLT-611A: Carton sealing, palletizing, strapping, securing or fixing. Economical type.
· JLT-602C, JLT-602, JLT-605, JLT-605A: Carton sealing, palletizing, strapping, fixing. Economical type.
· JLT-602A: Sealing for heavy objects, ordinary bundling and securing, metal coil sealing, pipe line strapping. Medium strength.
· JLT-607D: Steel rolls sealing, heavy objects carton sealing, ordinary bundling and reinforcing, safety helmet, for white cartons, coloring marks. Medium strength.
· JLT-695: Transformer or where there are special temperature and oil resistance requirements.Medium strength.
